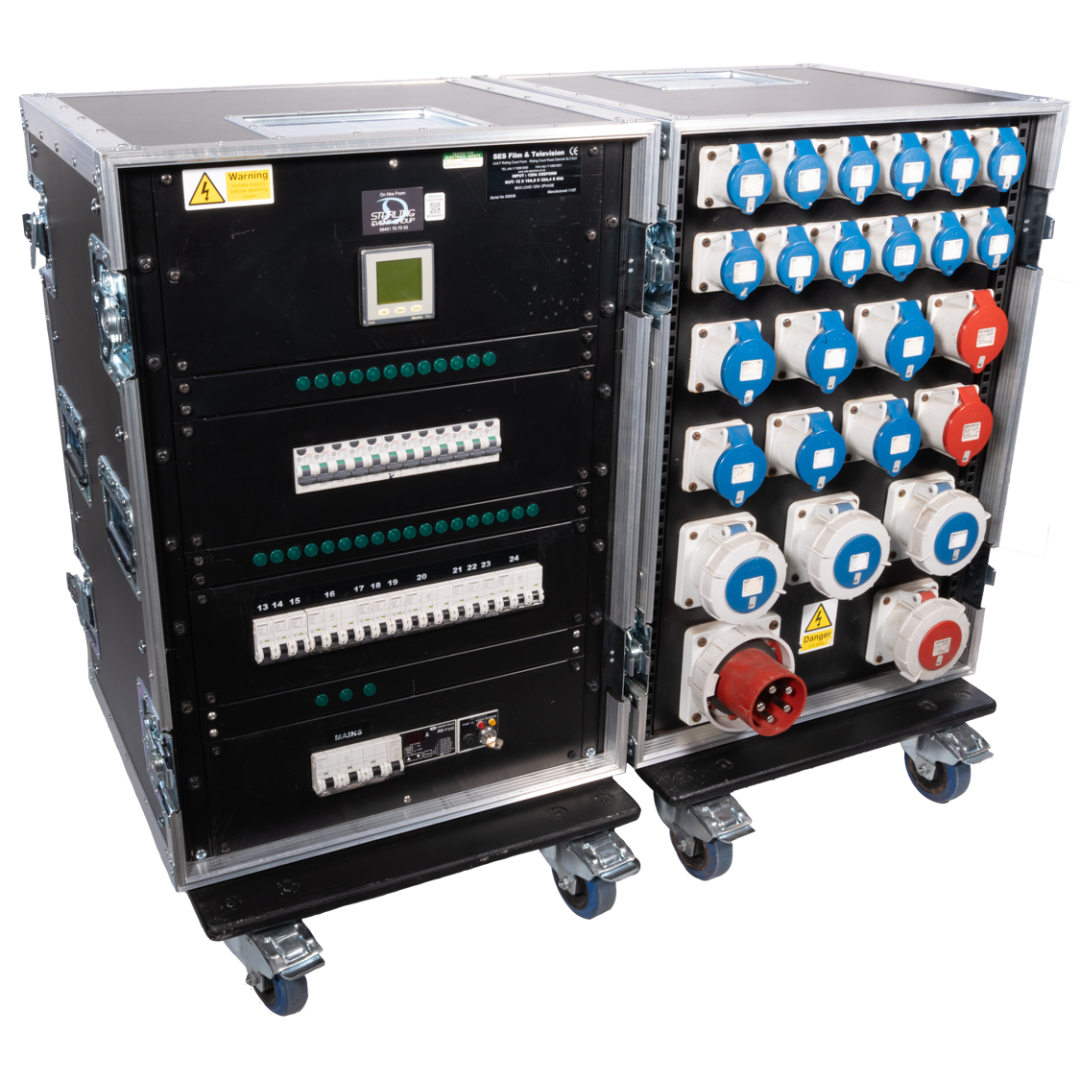

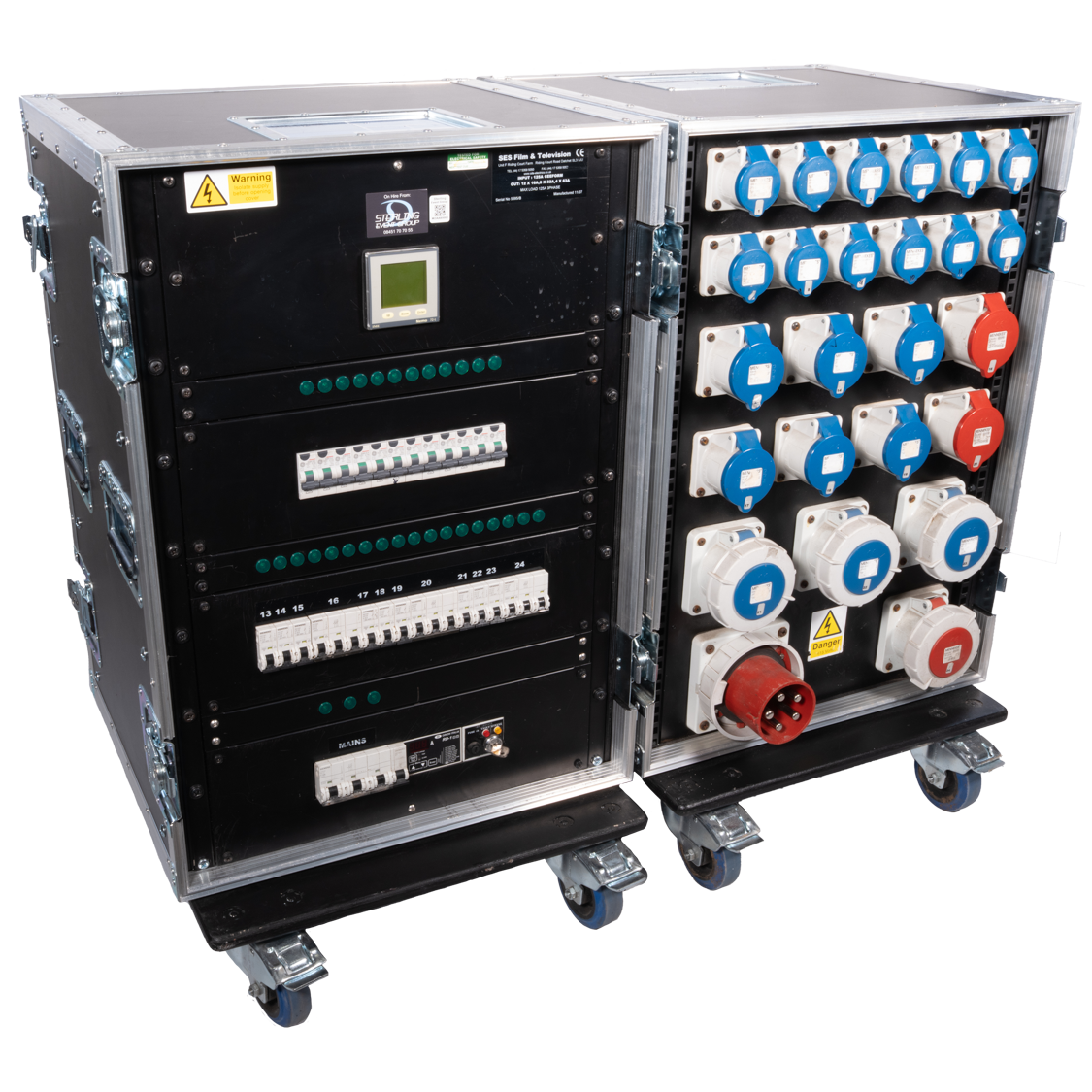

125A 3-Phase TYPE 2 Distro

NOT IP RATED

OUTPUTS
12 x 16A 1-Phase
6 x 32A 1-Phase
2 x 32A 3-Phase
3 x 63A 1-Phase
1 x 63A 3-Phase

INCOMING:
125A 3-Phase 230/400V 5-Pole Inlet

INLET PROTECTION:
125A 4-Pole MCB Main Switch (C-Curve) with Adjustable RCD protection (Time Delay and Earth Leakage Current range adjustable), RCD Override with Key Switch and Red LED indicator per phase when receiving power.

Overall Digital Meter fed from Inlet Protection

OUTGOING:
– Circuit 1 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 2 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 3 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 4 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 5 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 6 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 7 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 8 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 9 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 10 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 11 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 12 – 16A 1-Phase 230V socket
Protection: 16A 1-Pole RCBO (C-Curve) with 30mA Earth Leakage protection with Red LED indicator when receiving power.

– Circuit 13 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 14 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 15 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 16 – 32A 3-Phase 230/400V socket
Protection: 32A 3-Pole MCB (C-Curve) with Red LED indicator per phase when receiving power.

– Circuit 17 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 18 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 19 – 32A 1-Phase 230V socket
Protection: 32A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 20 – 32A 3-Phase 230/400V socket
Protection: 32A 3-Pole MCB (C-Curve) with Red LED indicator per phase when receiving power.

– Circuit 21 – 63A 1-Phase 230V socket
Protection: 63A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 22 – 63A 1-Phase 230V socket
Protection: 63A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 23 – 63A 1-Phase 230V socket
Protection: 63A 1-Pole MCB (C-Curve) with Red LED indicator when receiving power.

– Circuit 24 – 63A 3-Phase 230/400V socket
Protection: 63A 3-Pole MCB (C-Curve) with Red LED indicator per phase when receiving power.
