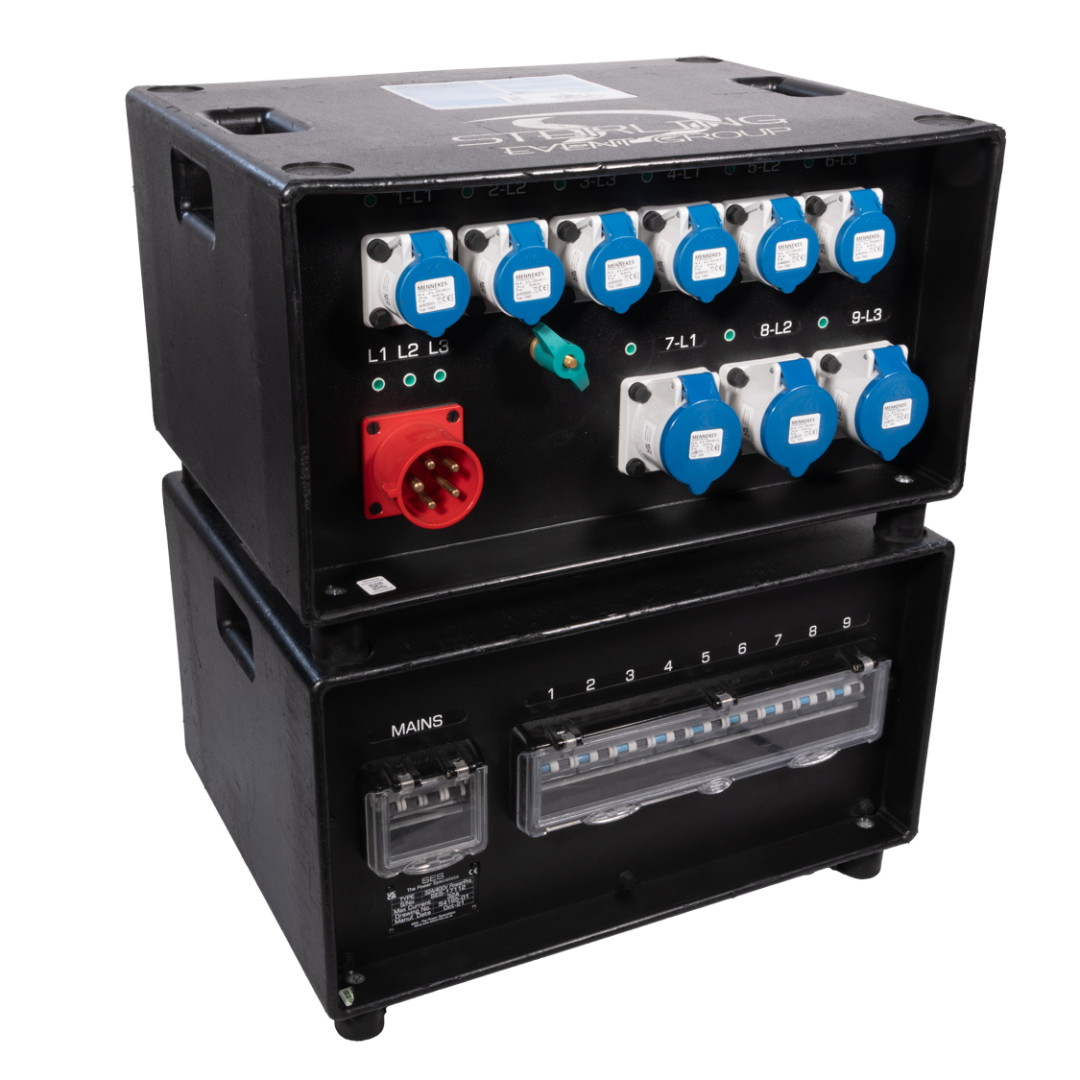

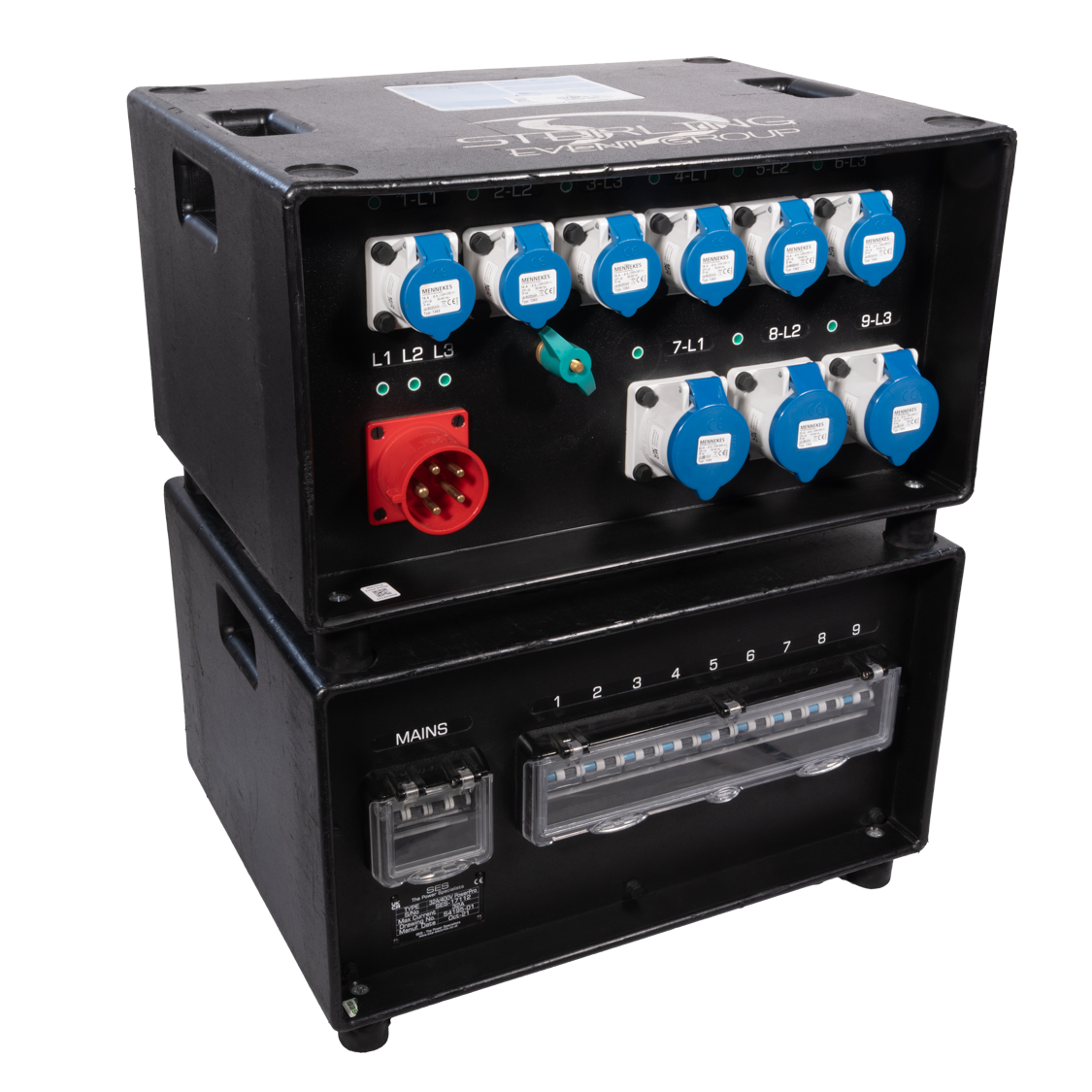

32A 3-Phase TYPE 1 Distro
IP44
INCOMING:
32A 3-Phase 230/400V 5-Pole Inlet (with Green LED Indicator for each Phase when power been received)
INLET PROTECTION:
32A 4-Pole MCB Main Switch (C-Curve)
OUTGOING:
– Circuit 1 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 2 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 3 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 4 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 5 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 6 – 16A 1-Phase 230V socket
Protection: 16A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 7 – 32A 1-Phase 230V socket
Protection: 32A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 8 – 32A 1-Phase 230V socket
Protection: 32A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
– Circuit 9 – 32A 1-Phase 230V socket
Protection: 32A 2-Pole RCBO (C-Curve) with 30mA RCD protection (A Type RCD) and Green LED indicator when receiving power.
