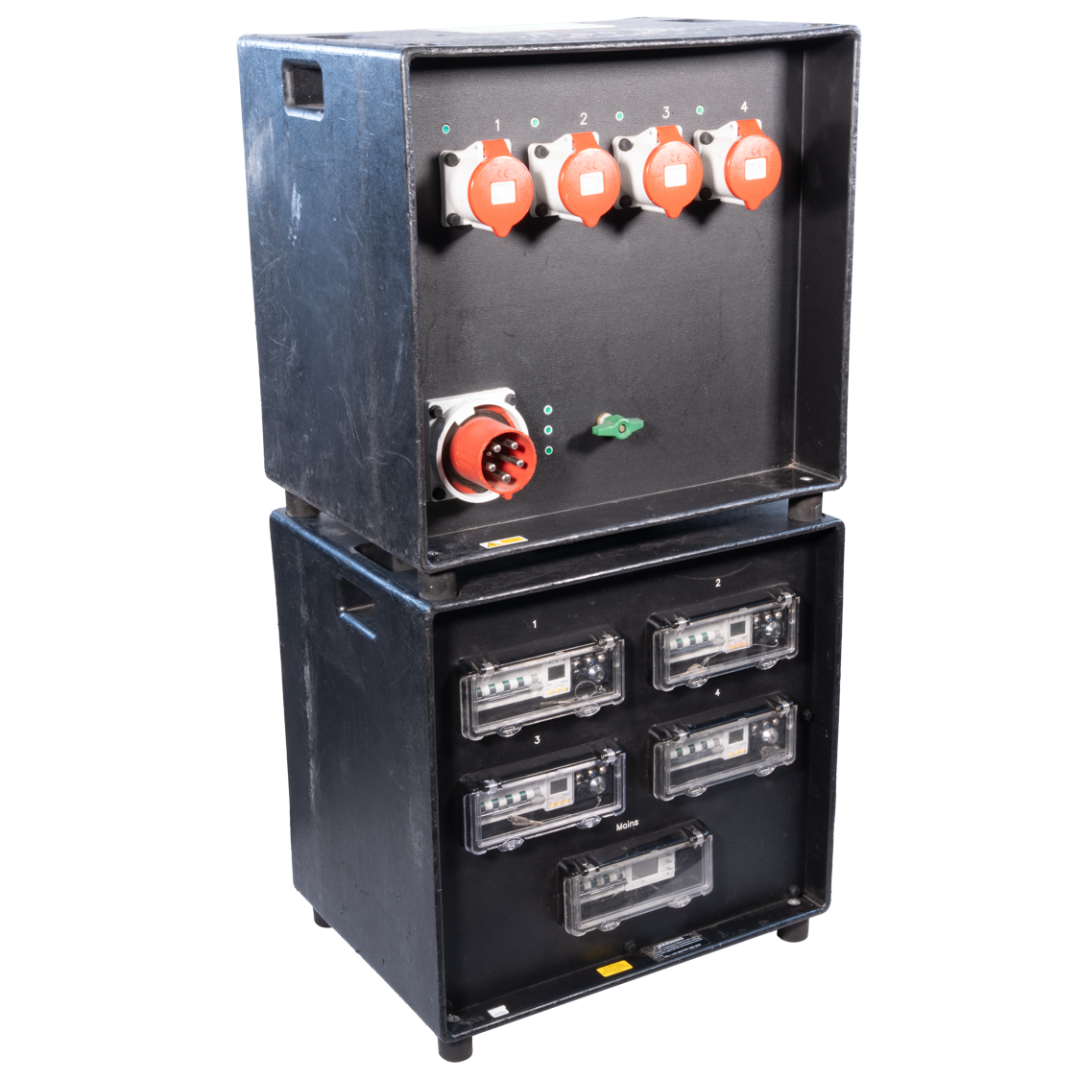

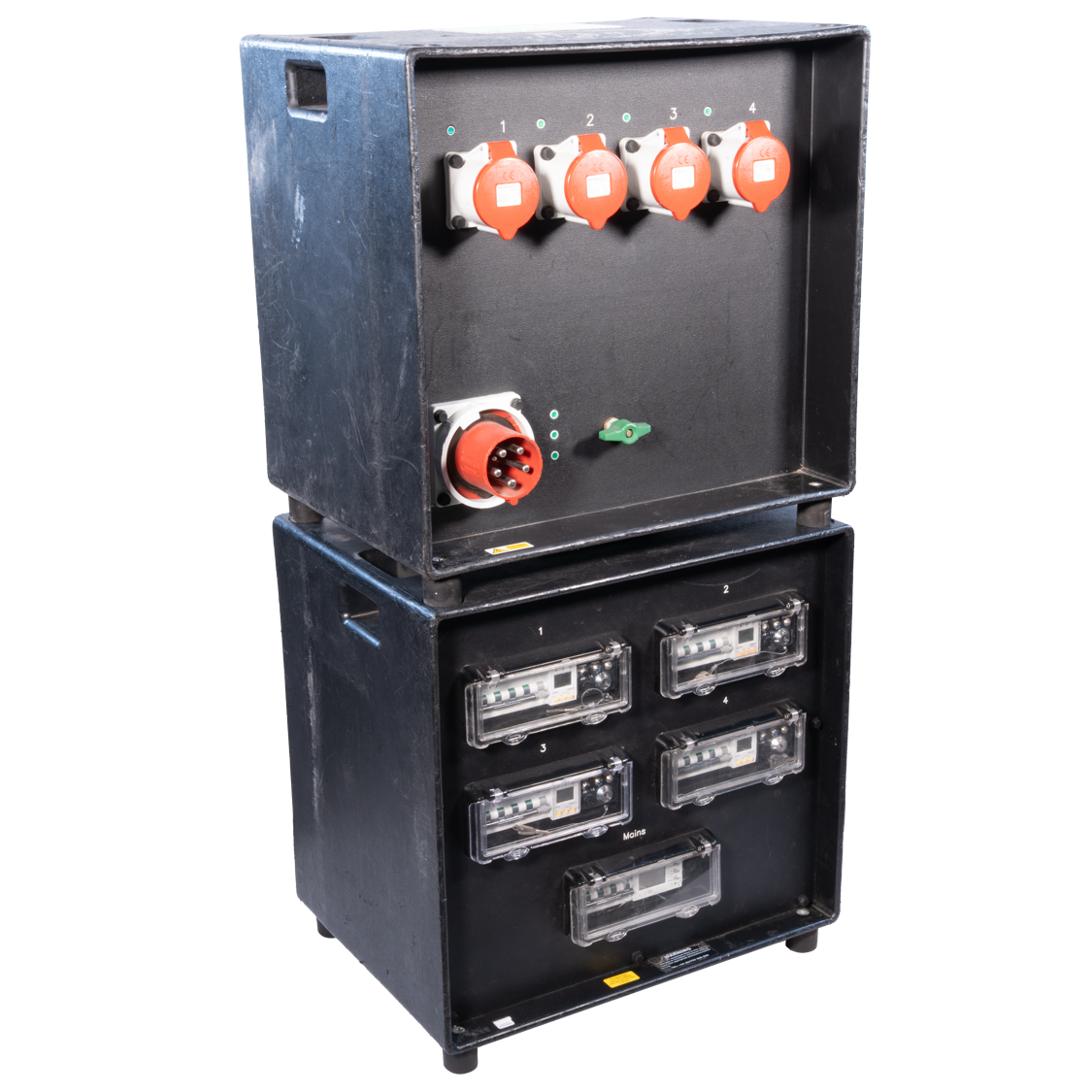

63A 3-Phase TYPE 1 Distro

IP44

INCOMING:
63A 3-Phase 230/400V 5-Pole Inlet

INLET PROTECTION:
63A 4-Pole MCB Main Switch (C-Curve)

Overall Digital Meter fed from Inlet Protection

OUTGOING:
– Circuit 1 – 32A 3-Phase 230/400V socket
Protection: 32A 4-Pole MCB (C-Curve) with Adjustable RCD protection (Time Delay and Earth Leakage Current range adjustable), RCD Override with Key Switch and Green LED indicator when receiving power.

– Circuit 2 – 32A 3-Phase 230/400V socket
Protection: 32A 4-Pole MCB (C-Curve) with Adjustable RCD protection (Time Delay and Earth Leakage Current range adjustable), RCD Override with Key Switch and Green LED indicator when receiving power.

– Circuit 3 – 32A 3-Phase 230/400V socket
Protection: 32A 4-Pole MCB (C-Curve) with Adjustable RCD protection (Time Delay and Earth Leakage Current range adjustable), RCD Override with Key Switch and Green LED indicator when receiving power.

– Circuit 4 – 32A 3-Phase 230/400V socket
Protection: 32A 4-Pole MCB (C-Curve) with Adjustable RCD protection (Time Delay and Earth Leakage Current range adjustable), RCD Override with Key Switch and Green LED indicator when receiving power.

– External Earth Stud
