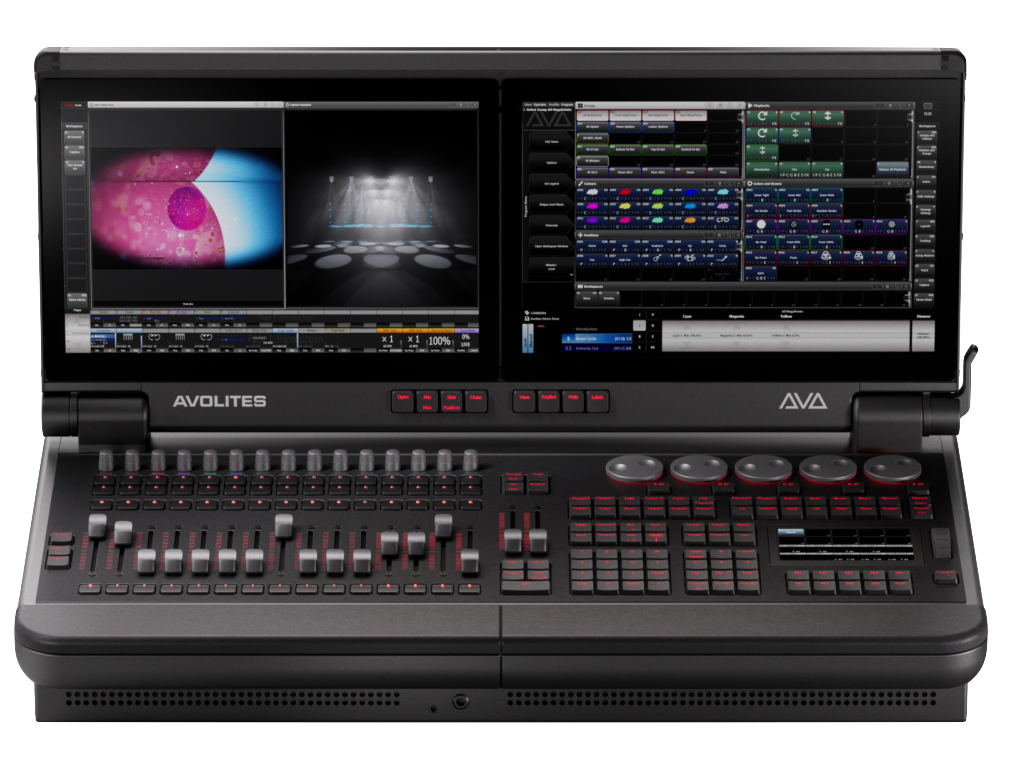

Avolites D7-215

15 motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
15 ultra high resolution touch sensitive playback encoders with push function, and RGB encoder indicator
5 x custom RGB backlit optical attribute encoders
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
2 x 14” 850 nits 1920×1200 capacitive touch main screens with adjustable brightness, mounted on folding panel
Dedicated level wheel and onscreen level indication
Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
LED desk reading light in panel above screens and over rear panel
4 x isolated DMX outputs via 5 pin XLR connectors
4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed
MIDI in, Loop & Out port in DIN 5, SMTP in/loop out, Foot trigger input, Audio trigger Input,
SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation
GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
Supports 2 x additional external DisplayPort 1920*1080 touchscreens
