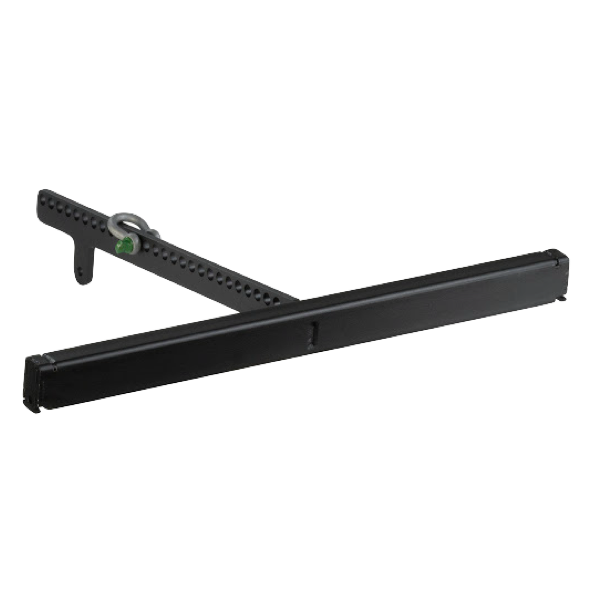

d&b Y Flying Adapter Z5394

The Z5394 Y Flying adapter is designed to be used in conjunction with the d&b Y-Series Y8 and Y12 loudspeakers. It is designed to suspend a total of 6 x Y8 or Y12 cabinets which corresponds to a total system weight of 123kg. The array can be suspended using one or two E6507 1t shackle(s) and appropriate lifting devices or steel wire ropes. Alternatively, the array can be suspended and horizontally aligned from a single pickpoint using the d&b Z5147 Rota clamp. The clamp allows the load to be attached to overhead bars or truss with a tube diameter of up to 50 mm.

By default this item is supplied with:
• 1 x 2m Steel
• 2 x 1 Ton Bow Shackle
• 1 x Stanley Fabric Tape Measure (30m)
• 2 x 6mm PA Guide Line Strings – 20m
