d&b Y Flying Frame Z5390 Inc. Accessories

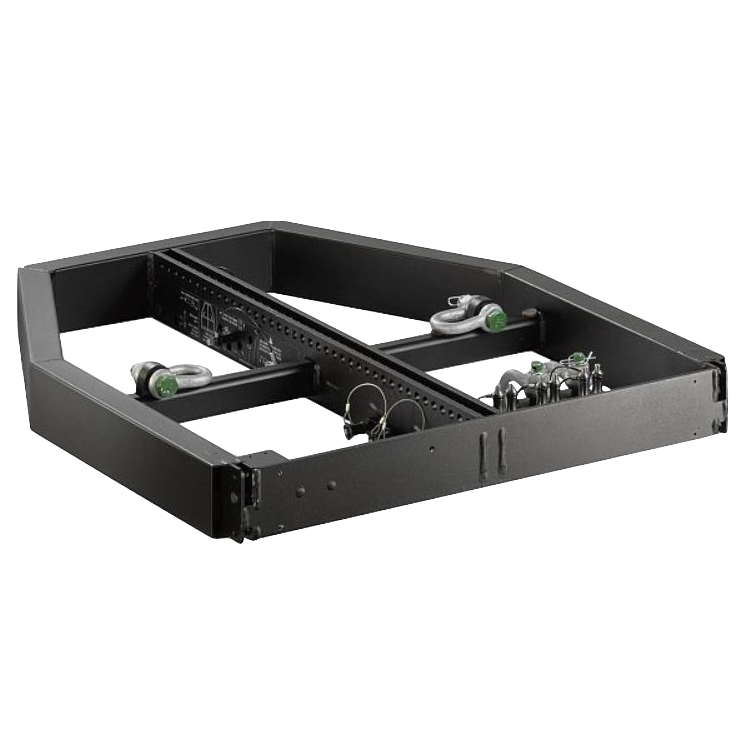

The Z5390 Y Flying frame is designed to support arrays consisting of Y8/Y12 and Y-SUB loudspeakers. The Flying frame is supplied with two Load adapters to allow single or dual pick point operation. Each Load adapter is supplied with a pair of Locking pins 10 mm and a 2 t shackle. The Flying frame is fitted with two safety points each equipped with a 2 t shackle to attach a secondary safety device using the supplied safety chain set. In addition, the enclosed Y Load adapter Rota clamp allows single pick point operation in combination with the d&b Z5147 Rota clamp for a maximum system weight of up to 500kg/1100lb. Two additional Front links together with a pair of Locking pins 8 mm each are supplied with the Flying frame. They are used to mount Y-Series cabinets on top of the Flying frame for the following setups; Mixed Y-Series array with Y-SUB cabinets at the top of the column and Y-Series ground stack with the Flying frame as ground support. An additional mounting plate is provided to accept industry standard inclinometers. An O-ring at the rear bottom of the frame slides out when releasing the respective Locking pin to attach a cable pick.
By default this item is supplied with:
• 1 Clutch Chain Hook – Masterlink 0.45 – 0.57m
• 1 d&b Y Safety Chainset Z5392
• 1 Round Sling 1m (Circular)-0.5m EWL
• 1 2 Ton Bow Shackle
• 1 Stanley Fabric Tape Measure (30m)
• 2 6mm PA Guide Line Strings – 20m
