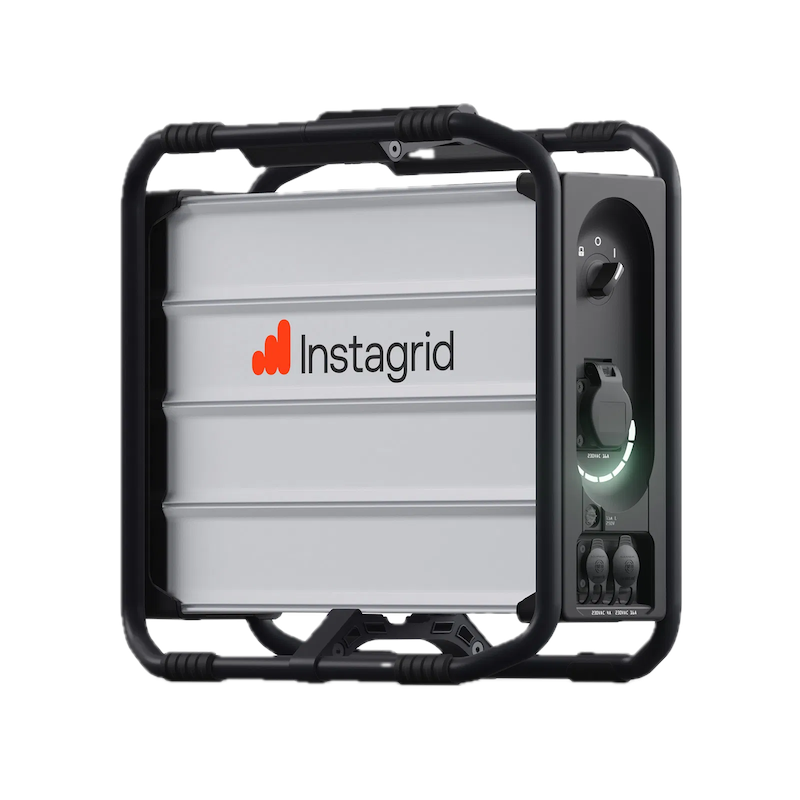

Instagrid ONE Type G

Instagrid ONE is a powerful, portable 230V AC battery system delivering grid-like performance for professionals working in film, events, construction, and remote locations. With a rated output of 3,600 W and a peak power capacity of up to 18,000 W, Instagrid ONE handles demanding electrical loads without noise, fumes, or trailing cables.

Weighing just 20kg, this compact unit can be carried in one hand, replacing bulky generators with clean, silent, and instant power. Its rugged IP54-rated design ensures reliable performance indoors or out, across all weather conditions and environments.

The fanless, zero-emissions system is whisper-quiet (<30 dB) and recharges in under 2.5 hours from a standard 230V socket. Whether you need to power lighting, AV gear, production tools, or catering equipment, Instagrid ONE delivers with zero compromise.

Instagrid ONE enables off-grid energy freedom for modern professionals — from powering a camera crane on set to running a PA system at a music event, all without compromising performance or sustainability.

Rated Output Power: 3,600W (230V AC / 16 A)
Peak Output Power: 18,000W
Overload Tolerance: 150% (5,400W) for up to 500 sec; 200% (7,200W) for up to 50 sec; 250% (9,000W) for up to 10 sec
Output Voltage: 230V AC / 50Hz
Output Sockets: 1 x BS 1363 (13A); 1 x Neutrik PowerCON TRUE1 TOP®
Input Voltage (Charging): 100–240V AC / 50–60Hz
Input Power (Charging): 400–960W
Charge Time: Under 2.5 hours (from 0–100%, using 230V AC)
Battery Capacity: 2,074Wh (24 x 86.4Wh modules)
Battery Type: Lithium-ion (stacked micro-inverter architecture)
Weight: 20kg
Dimensions (L x W x H): 420 x 210 x 420mm
Operating Temperature: –20°C to +60°C (discharging); 0°C to +45°C (charging)
Protection Class: Class II (double-insulated)
IP Rating: IP54 – dust and splash resistant
Noise Emission: <30dB(A) – fanless design
Mounting & Transport: Integrated handle; suitable for standalone or LINK systems
Certifications: CE (RED, LVD, EMC, RoHS, WEEE), REACH-compliant
