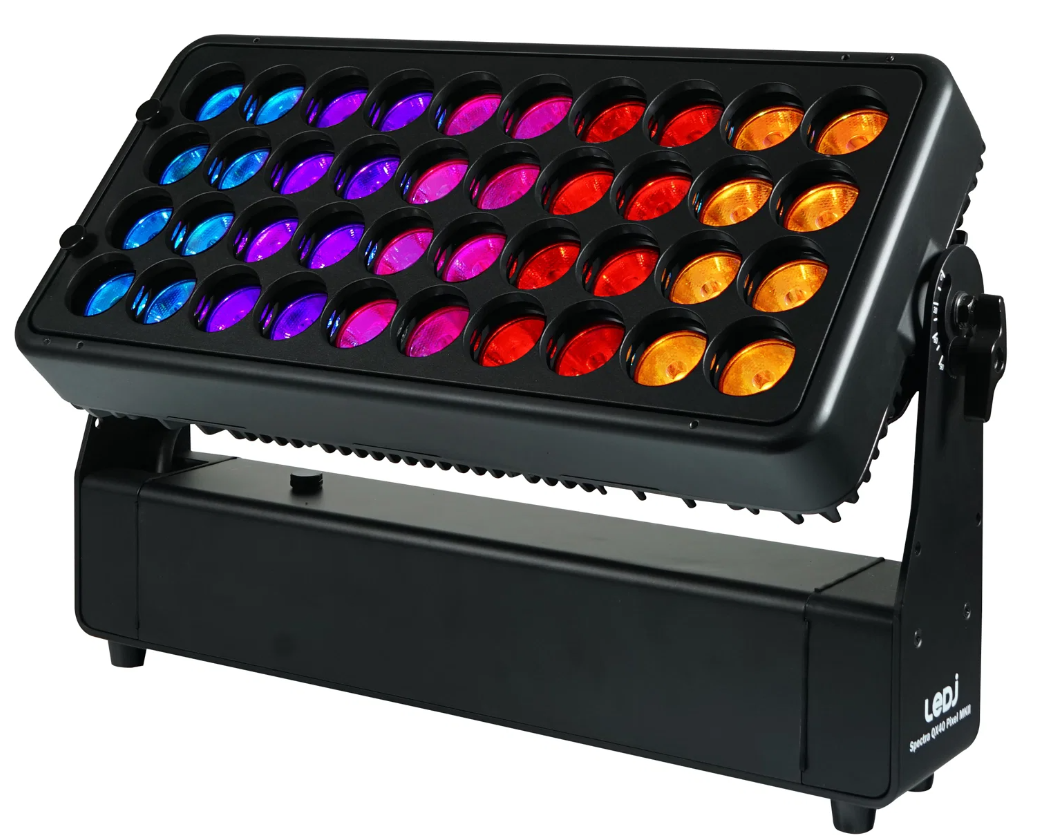

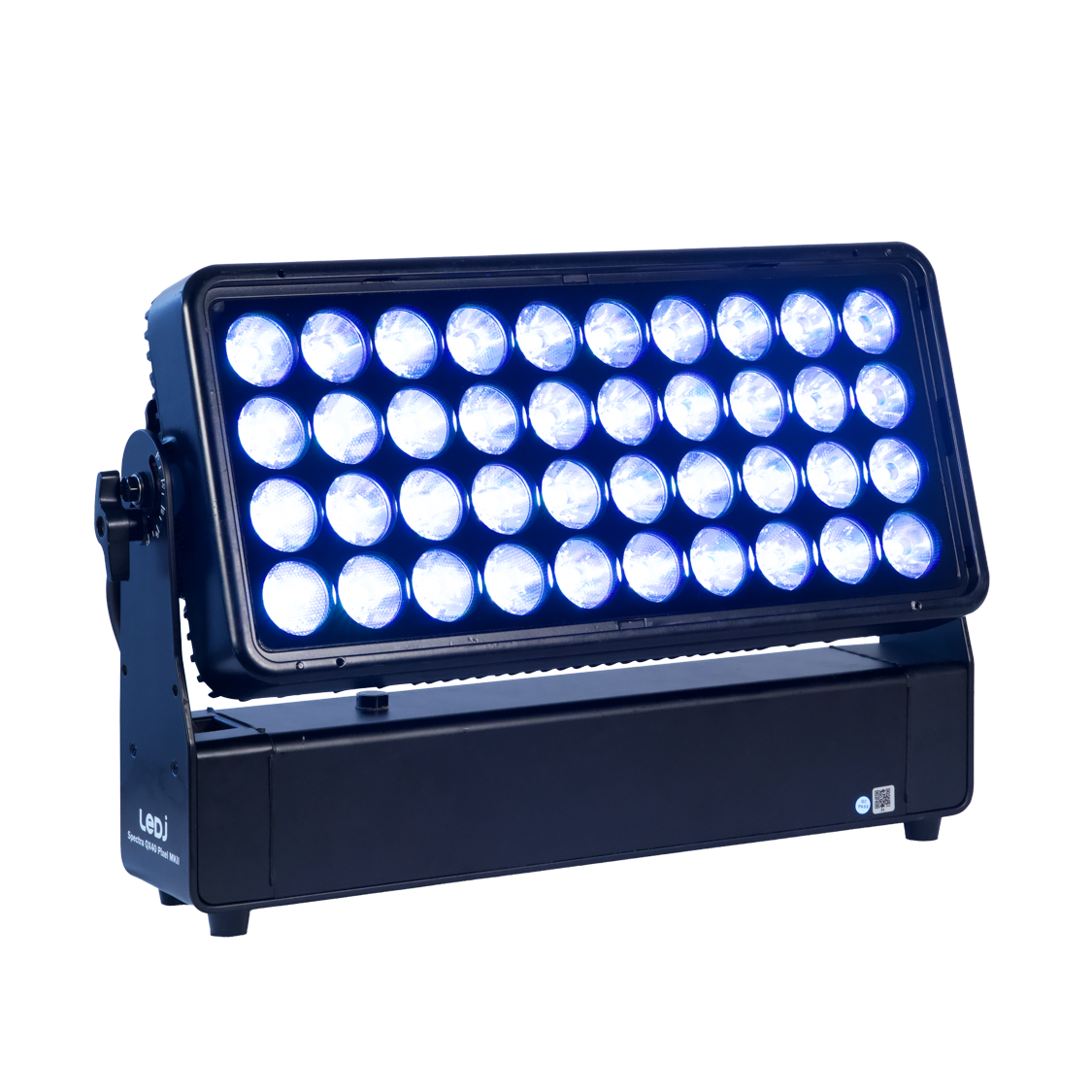

LEDJ Spectra QX40 Pixel MKII
Equipped with 40 x 15W RGBW LEDs, the QX40 is suitable for illuminating event spaces, stages or facades, while the zone control allows lighting designers to create stunning effects. The unit utilises quad-colour LED technology to produce a wide colour spectrum from rich, primary colours through to subtle pastel hues. Designed for rental and events, the QX40 features quick release omega brackets, PowerTwist TR1 connectors for power input/output and also features both wired and wireless DMX by W-DMX Sweden.
40 x 15W quad-colour LEDs (RGBW)
Beam angle: 8°
8° – 67,847 Lux @ 2m (full on)
Refresh rate: 3kHz
Pixel zone mapping
Wireless DMX control using CRMX TiMo RX by LumenRadio (supports all CRMX and W-DMX protocols)
DMX channels: 1/3/4/6/9/20 or 25 selectable
RDM (Remote Device Management)
Static colour, colour change and colour fade modes
Primary/secondary mode when cabled
0 – 100% dimming
4 dimming curves: Linear, square law, inverse square law and S-curve
Variable strobe
Supplied with installation bracket and quick release omega clamps
4 button menu with OLED display
PowerTwist TR1 input/output
IP rated 5-Pin XLR input/output
Fan cooled
