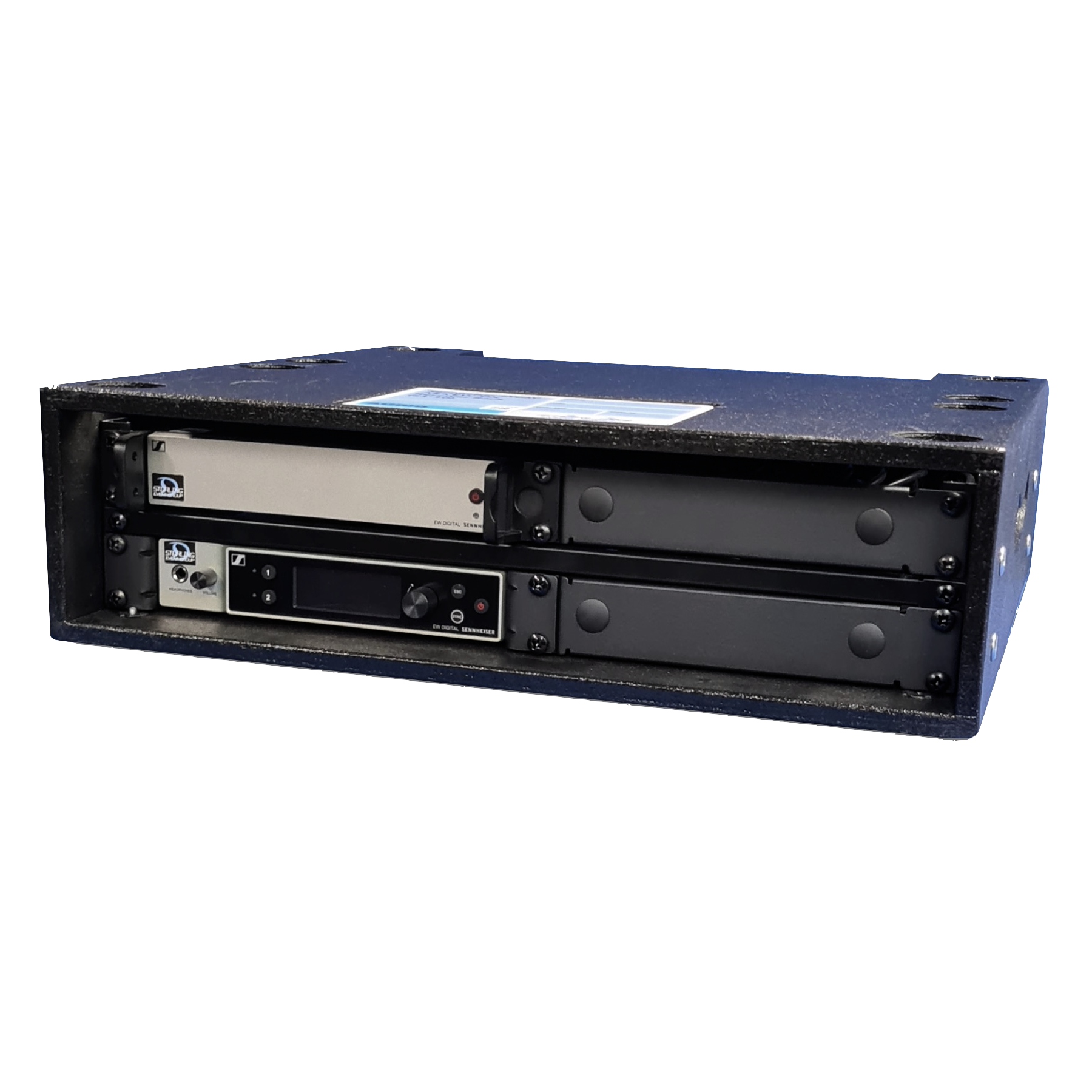

Sennheiser EW-DX 2 Way ASA Receiver Rack (S1-10)

This rack is made up of the following key components:
• Sennheiser EW-D ASA Antenna Splitter
• 1 x Sennheiser EW-DX EM 2 Receiver (S1-10)

The Sennheiser EW-DX EM 2 is a two-channel digital receiver designed for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. It offers an extended 88 MHz switching bandwidth, allowing for intermodulation-free operation with up to 293 channels. The receiver features secure AES-256 encryption for confidential audio transmission, is network enabled for expanded remote control with Sennheiser Control Cockpit and Wireless System Manager, and supports Power over Ethernet (PoE).

This rack operates in the S1-10 frequency range (606.2 – 693.8MHz).

A patch panel on the rear of the rack gives access to 3 additional ASA outputs for linking to other racks, BNC inputs for antennas, powercon input and link output connections. The rack also includes an internal POE network switch with 4 additional ports on the rear to all network control of the units and linking to other racks. A conventiently installed XLR loom is attached to the rear for patching into consoles or stageboxes.

By default, this rack is supplied with:
• 13A – Powercon Cable
• 2 x Sennheiser ADP UHF Antennas
• 2 x 5m RG58 BNC Cable
• K&M 201 Antenna Microphone Stand
