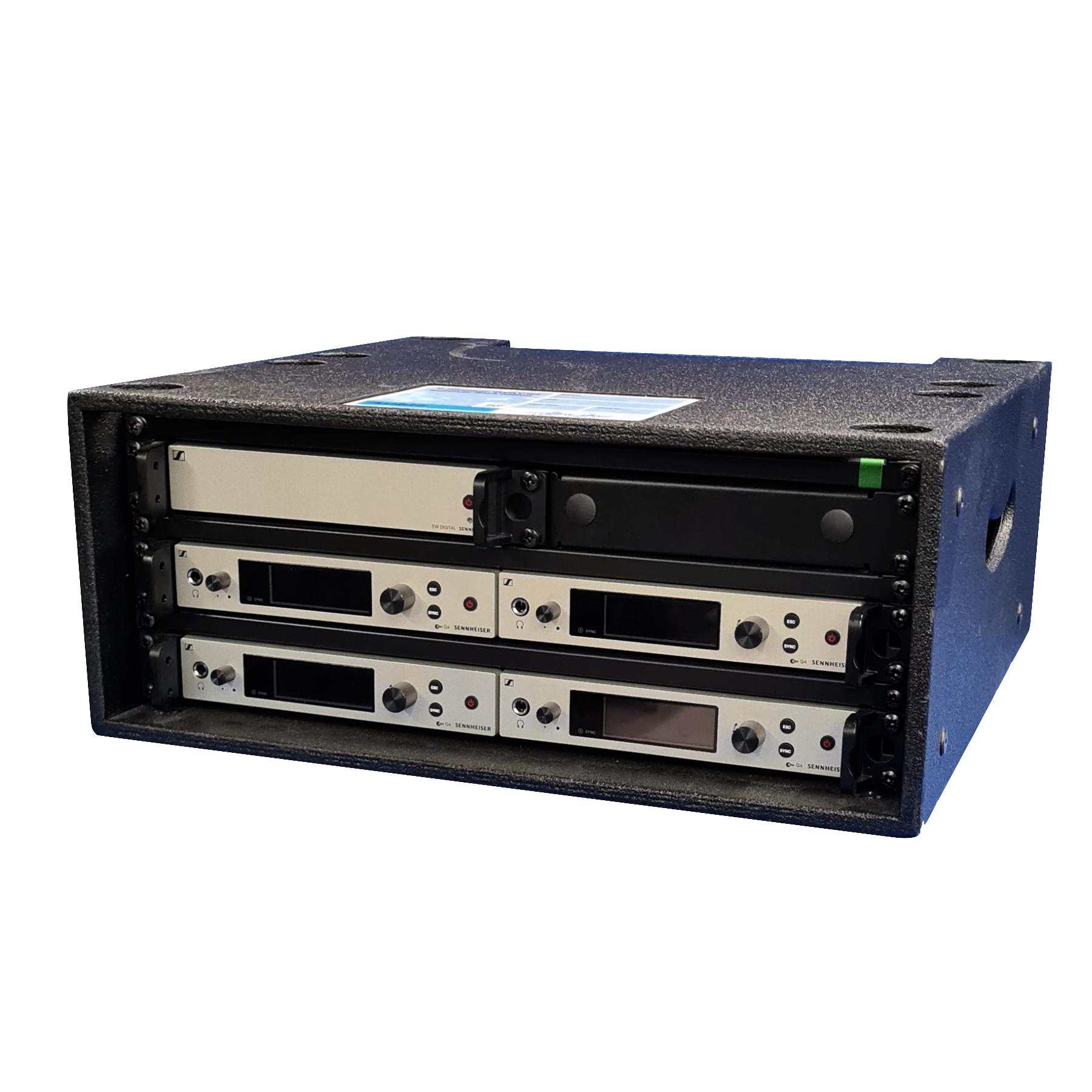

Sennheiser G4 4 Way Receiver Rack (Gw)

This rack is made up of the following key components:
• Sennheiser EW-D ASA Antenna Splitter
• 4 x Sennheiser EM 300-500 G4 Receiver (Gw)

The Sennheiser EM 300-500 G4 is a true diversity half-rack receiver designed for professional wireless audio applications. It features an intuitive OLED display for easy setup and monitoring. With a bandwidth of up to 88 MHz and support for up to 32 channels, it ensures flexible and reliable operation. The receiver offers adjustable RF output power (10/30/50 mW) and a transmission range of up to 100 meters (330 feet).

This rack operates in the Gw frequency range (558 – 626MHz).

A patch panel on the rear of the rack gives access to the ASA link output, BNC inputs for antennas, powercon input and a link output connection. The rack also includes an internal network switch with 2 ports accessible on the rear to all network control of the units and linking to other racks. A conventiently installed XLR loom is attached to the rear for patching into consoles or stageboxes.

By default, this rack is supplied with:
• 13A – Powercon Cable
• 2 x Sennheiser ADP UHF Antennas
• 2 x 5m RG58 BNC Cable
• K&M 201 Antenna Microphone Stand
