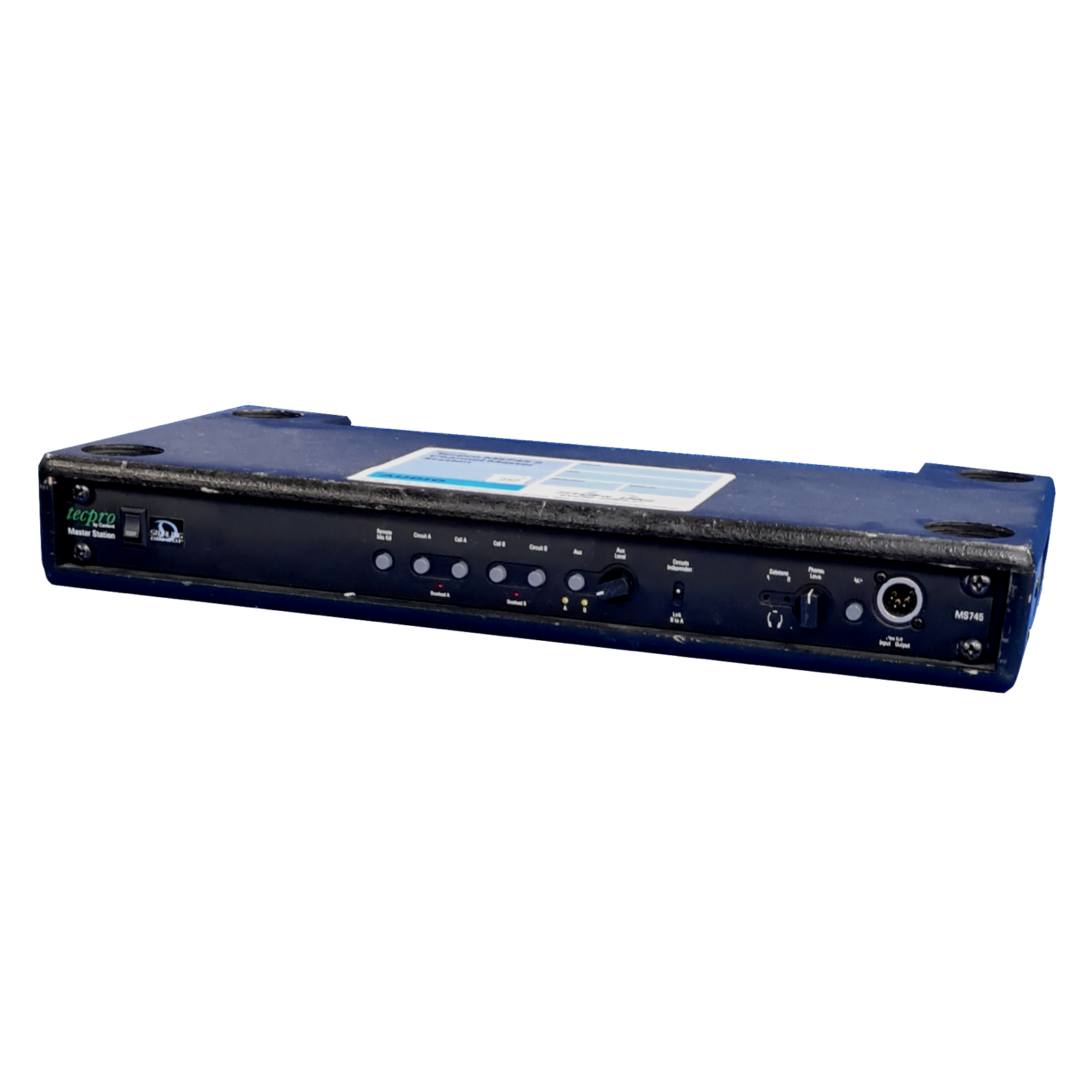

Tecpro MS745 Dual Channel Master Station

Developed from the UK’s most successful wired intercom system, the MS745 Master Station unit inherits the sturdiness and excellent build quality of the original Tecpro designs, incorporated into a space saving 1U format. Despite the reduced size, several new features have been added that address common installation and operational issues.

The MS745 master station supplies 1.25A per circuit – almost doubling the drive current of the original Tecpro master stations. New features include ‘Remote Mic Kill’ to help keep intercom channels free of unnecessary noise. Latching and non-latching modes have been added to some selector switches to increase their functionality.

Each intercom circuit has its own power supply with short-circuit protection. All protection is electronic and automatic so no resetting is necessary following the removal of a fault condition. As the supplies are independent, in the event of a cable fault temporarily disabling one circuit, the other circuit will continue to operate uninterrupted. Over-temperature circuitry monitors the entire power supply.

The MS745 is fitted with a Universal Power Supply and can be operated world-wide without the need to change AC power settings.
