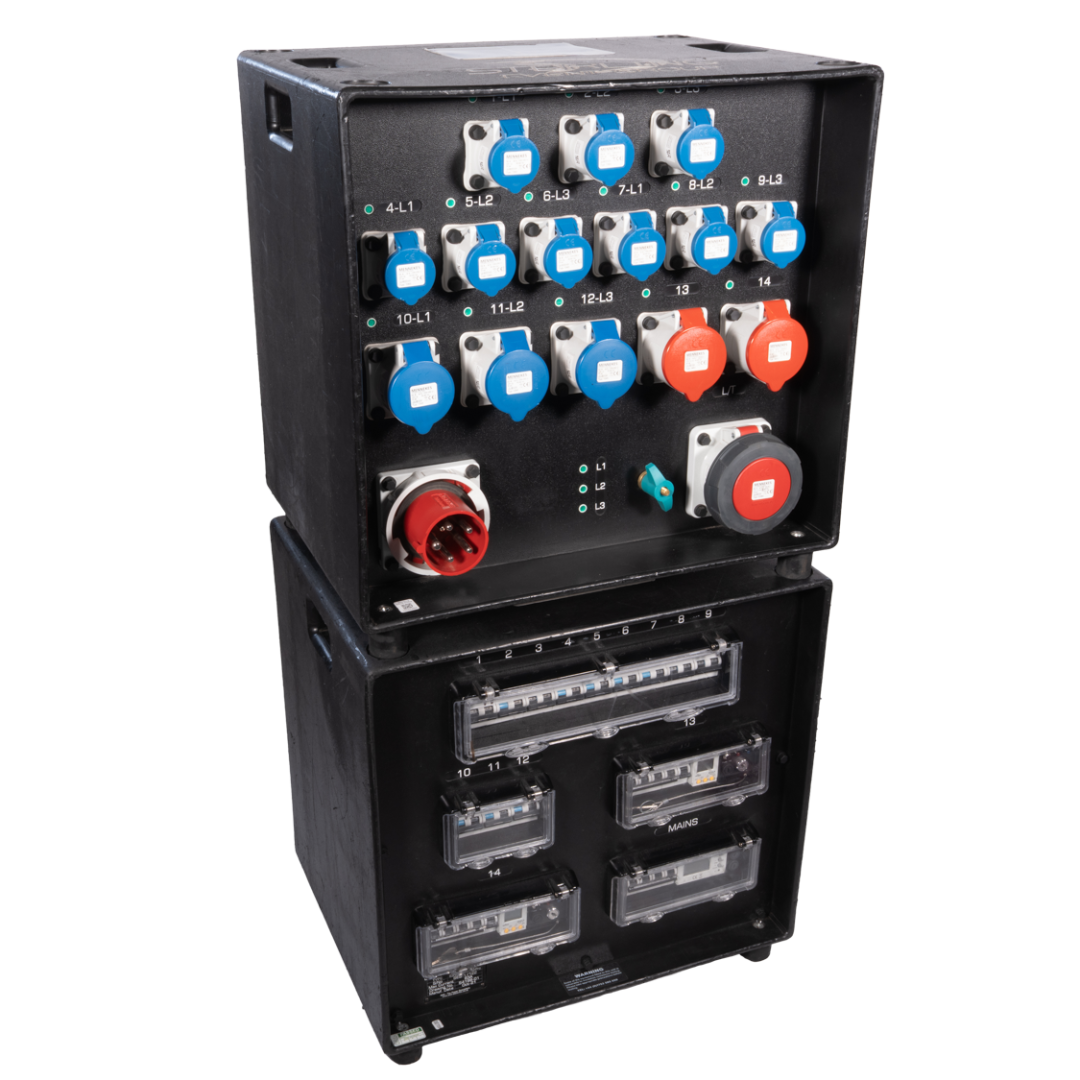

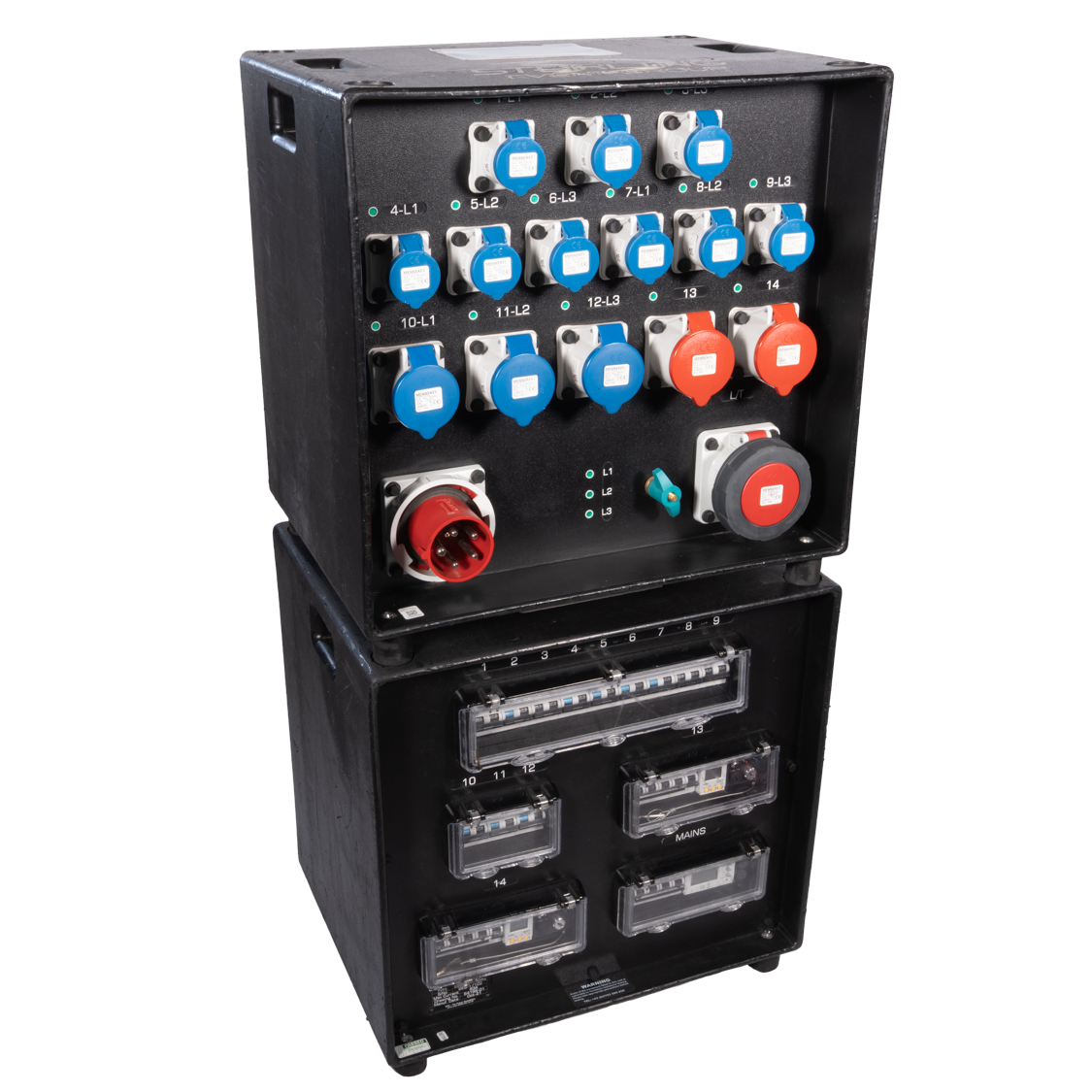

63A 3-Phase TYPE 4 Distro

IP44

63A 3PH Incomer
Earth Stud
Outputs
2 x 32A 3PH
3 x 32A
9 x 16A

SES Distro
Incoming:
– 63A 230/400V 3-Phase 5-Pole Plug
– Overall Digital Meter
– Green Neon Indicators for each phase to show all phases getting to the unit as they should be.

Mains Protection:
– 63A Type C 4-Pole MCB

Outgoing:
– Circuit 1 (1-L1) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 2 (1-L2) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 3 (1-L3) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 4 (2-L1) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 5 (2-L2) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 6 (2-L3) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 7 (3-L1) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 8 (3-L2) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 9 (3-L3) – 16A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 10 (4-L1) – 32A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 11 (4-L2) – 32A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 12 (4-L3) – 32A 230V 1-Phase with 2-Pole 16A Type C 30mA RCBO Protection

– Circuit 13 (5-L1-L2-L3) – 32A 230/400V 3-Phase with 4-Pole 32A Type C MCB Protection (with Digital
Adjustable ELR and Shunt Trip for RCD Protection)

– Circuit 14 (6-L1-L2-L3) – 32A 230/400V 3-Phase with 4-Pole 32A Type C MCB Protection (with Digital Adjustable ELR and Shunt Trip for RCD Protection)

– Circuit 15 Link Through Outlet (L/T-L1-L2-L3) – 63A 230/400V 3-Phase Fed from Mains Protection.

– Each way has a green neon indicator to show everything is good with the circuit.
– ELR Adjustable RCD Protection can by Overridden if necessary, complete with Blue neon to show when this is overridden and a red neon if there is a fault on the circuit and/or RCD protection integration.
– External Earth Stud
